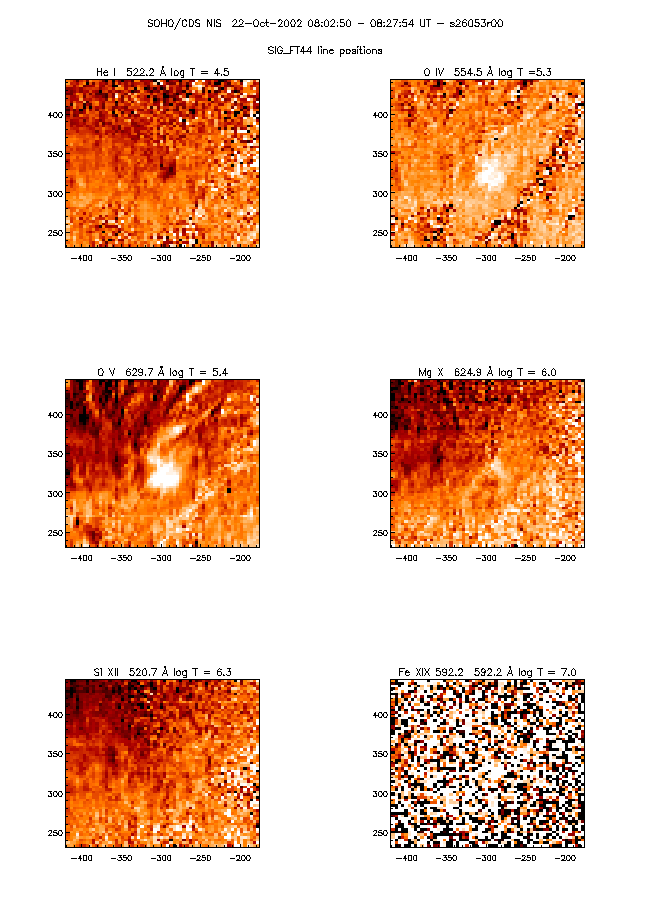

• s26053r00_pos.gif

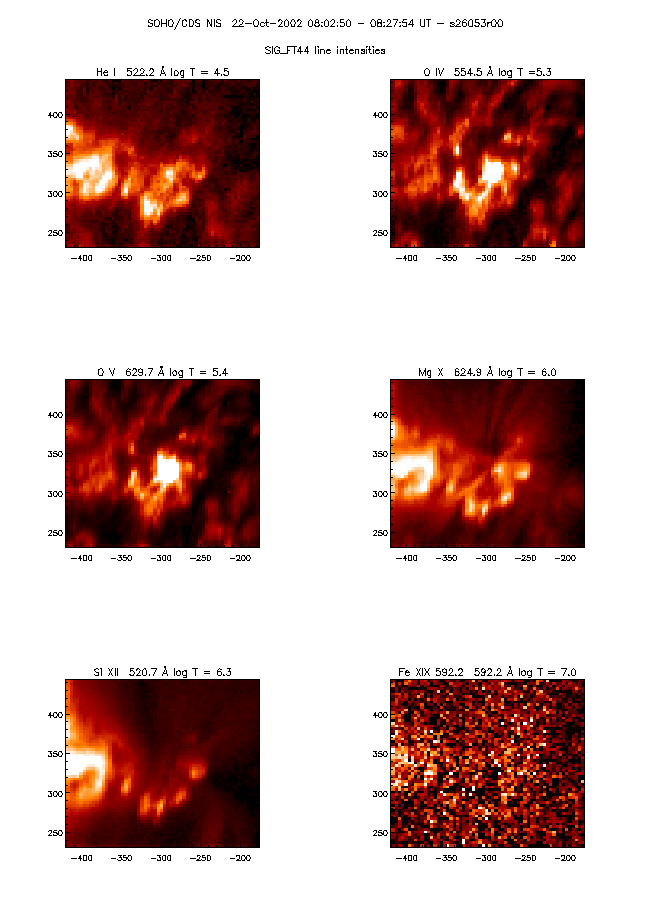

  pre-flare FAST RASTER. Interesting sunspot area with strong TR BR in it and strong redshifts in all TR lines. (He I shows blue-shift instead). OV is almost saturated, at 1e4 counts in the middle!!!!


  ---

• s26054r00_int.gif
• s26054r00_pos.gif

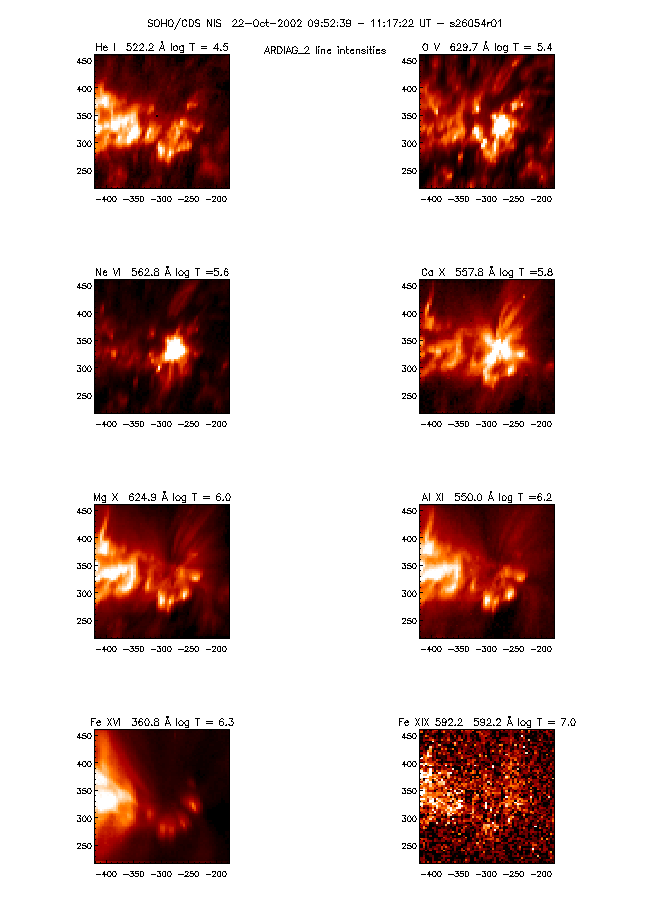

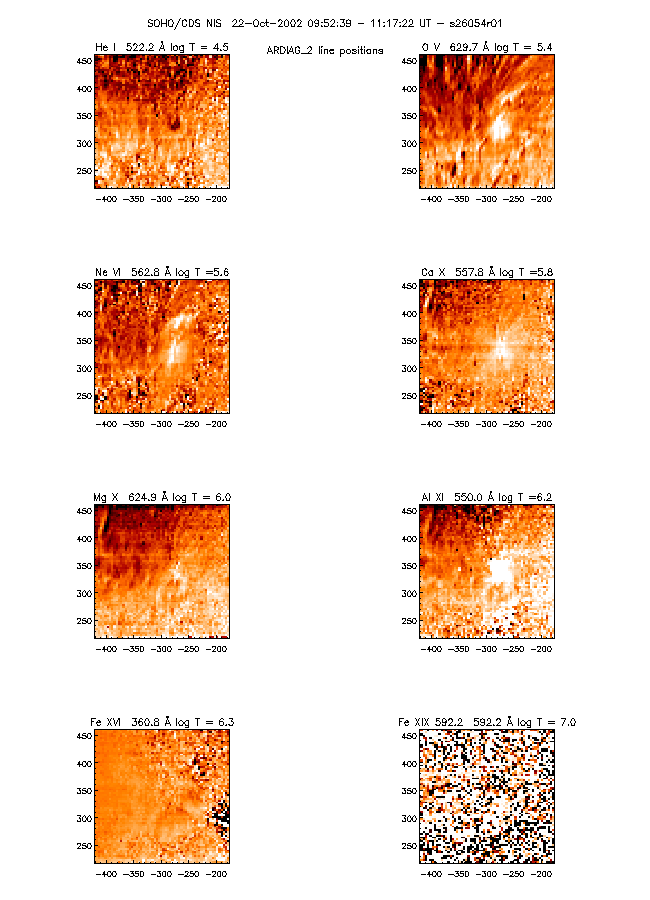

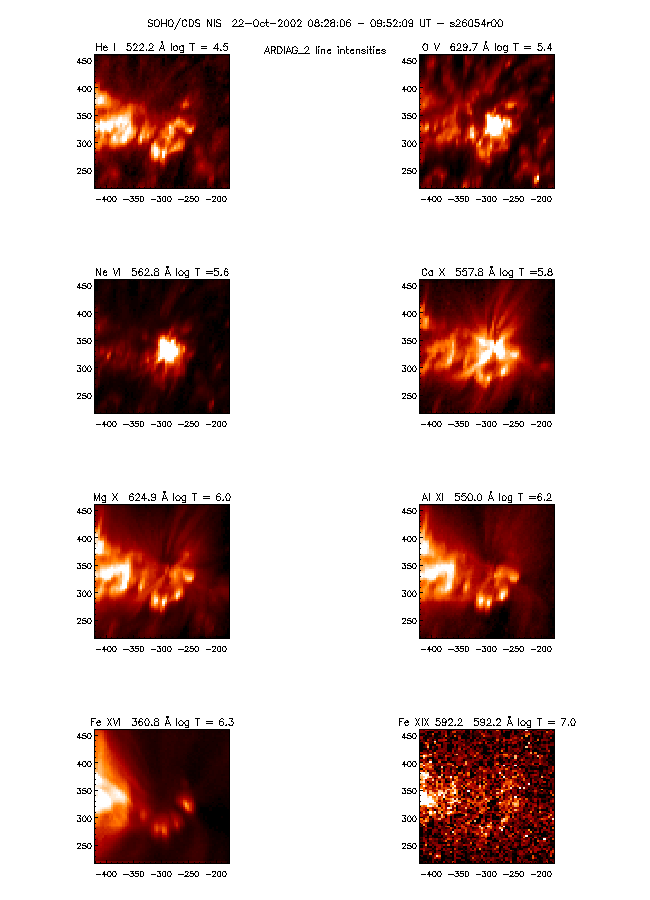

  DIAGNOSTIC RASTER. same as previous.


  ---

• s26054r01_int.gif
• s26054r01_pos.gif
  DIAGNOSTIC RASTER. same as previous.


  ---

• s26055r00_int.gif
• s26055r00_pos.gif

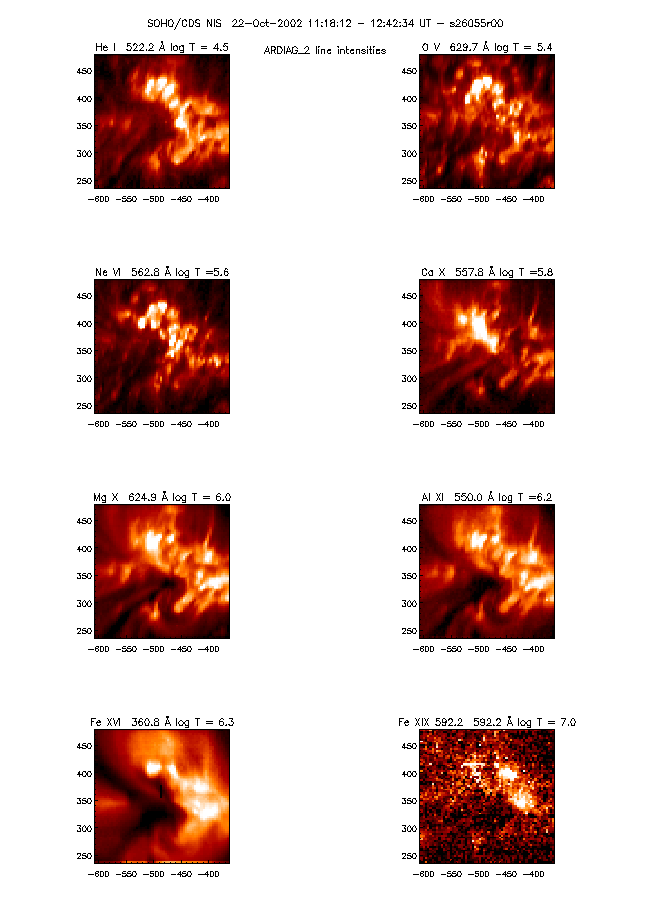

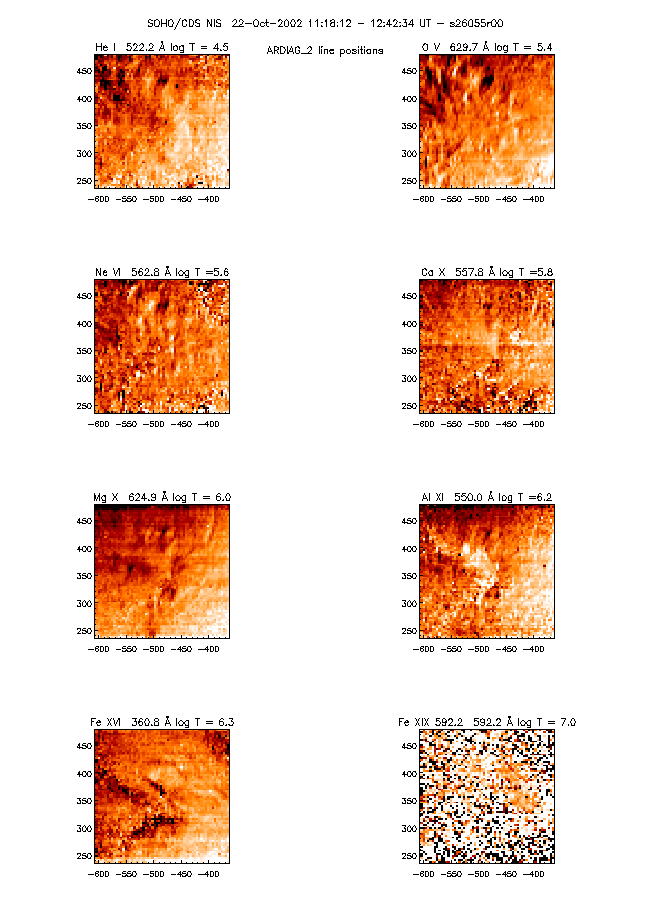

  DIAGNOSTIC RASTER. same as previous, but on the trailing part of the AR.


  ---

• s26056r00_int.gif
• s26056r00_pos.gif
• s26056r00_fwhm.gif

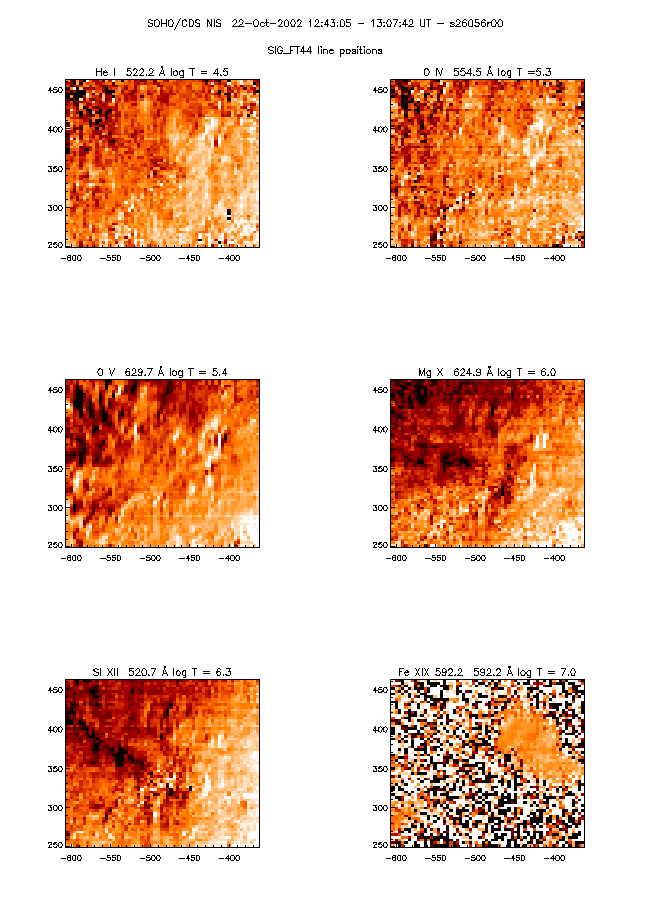

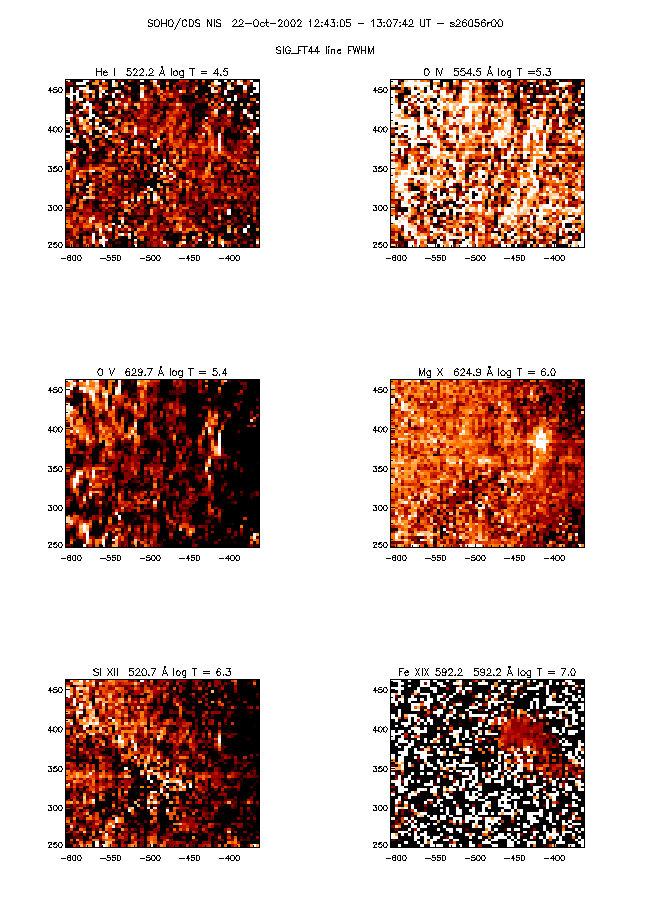

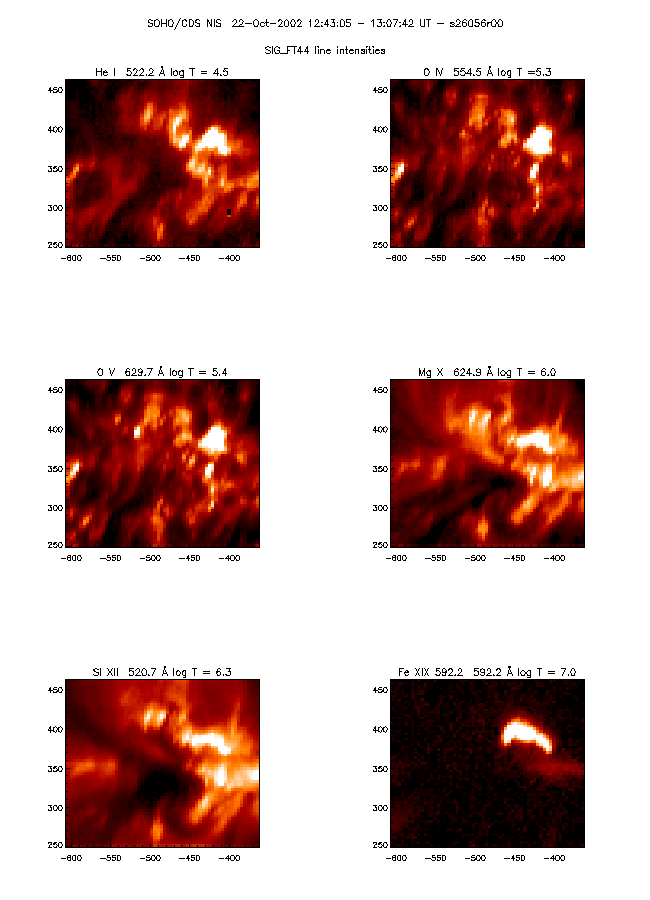

  FAST RASTER, on the trailing part of the AR. strong arch-like Fe XIX emission. This is a relatively strong Flare emission.


  ---

  Unfortunately, for some (??) reasons, CDS pointed to another region during 13:07:42-15:18:16 UT.

  ---

  M1 flare emission 15:18:16-15:43:16 UT

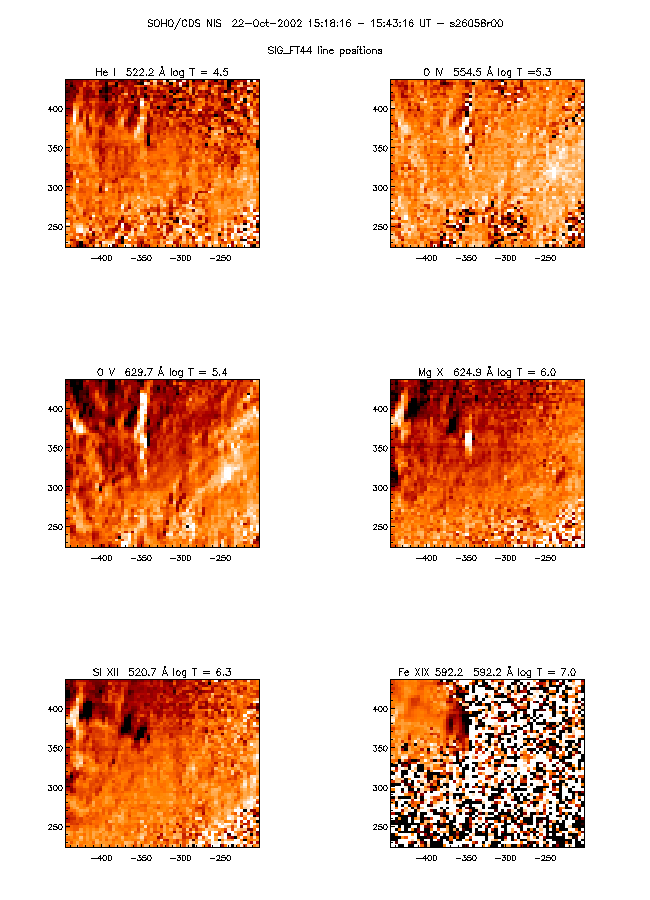

  CDS Maps of the FAST RASTER:

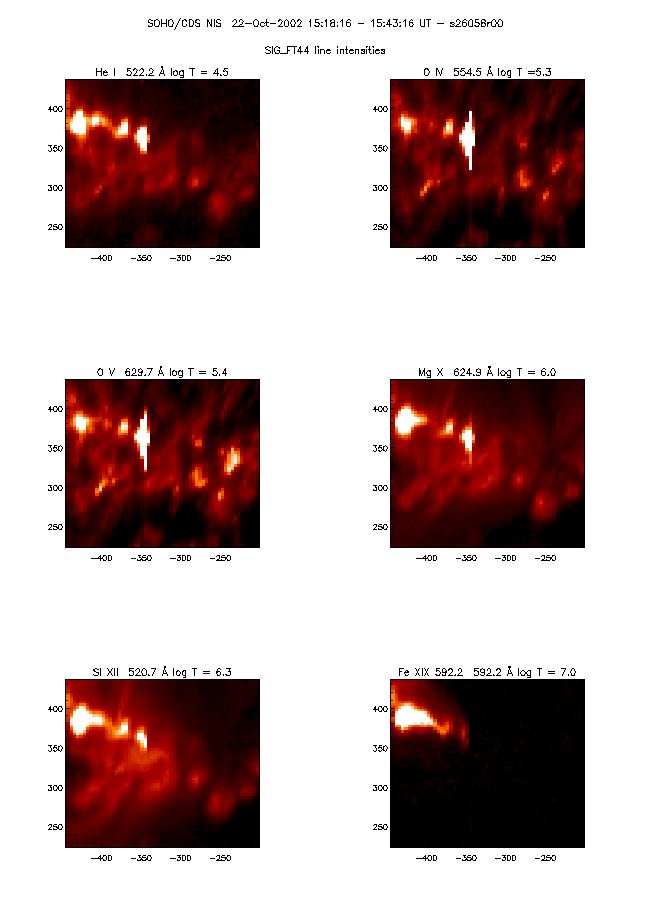

• s26058r00_int.gif
• s26058r00_pos.gif

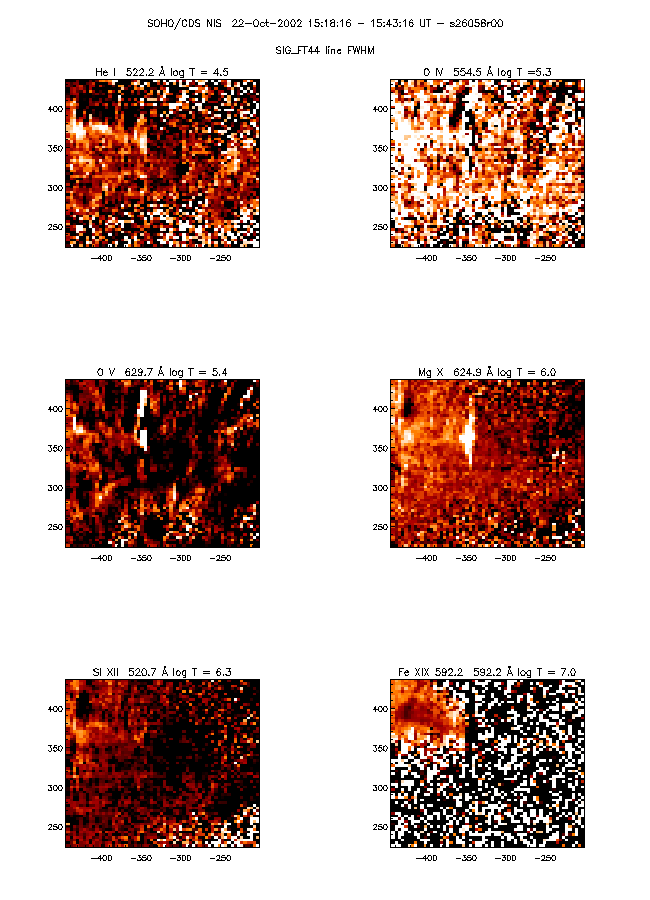

• s26058r00_fwhm.gif

  CDS Maps overlaid (flare part saturated in TR lines):


• s26058r00_HeI_int_mdi.gif

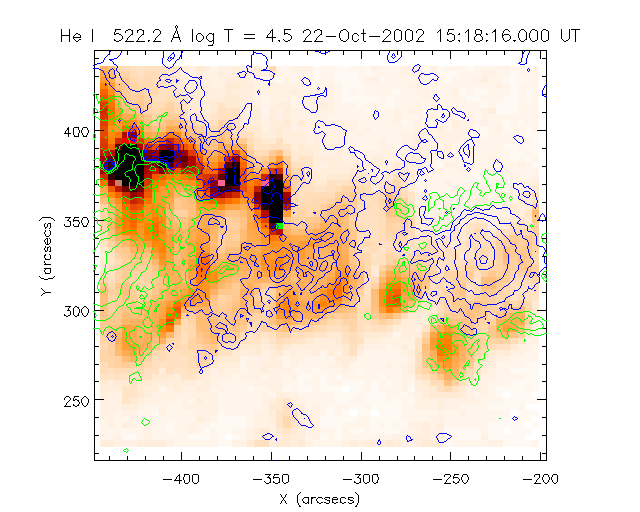

  HeI intensities + MDI contours.

• s26058r00_HeI_pos_mdi.gif
  HeI velocity map (Km/s) + MDI contours.

• s26058r00_OV_int_mdi.gif

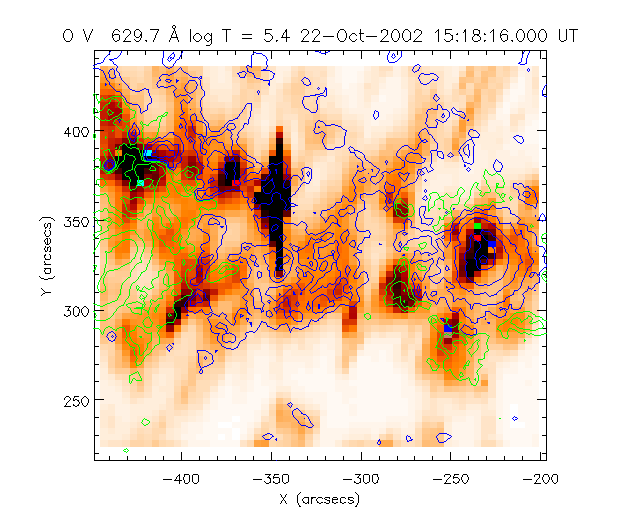

  OV intensities + MDI contours.

• s26058r00_OV_pos_mdi.gif
  OV velocity map (Km/s) + MDI contours.

• s26058r00_MgX_int_mdi.gif

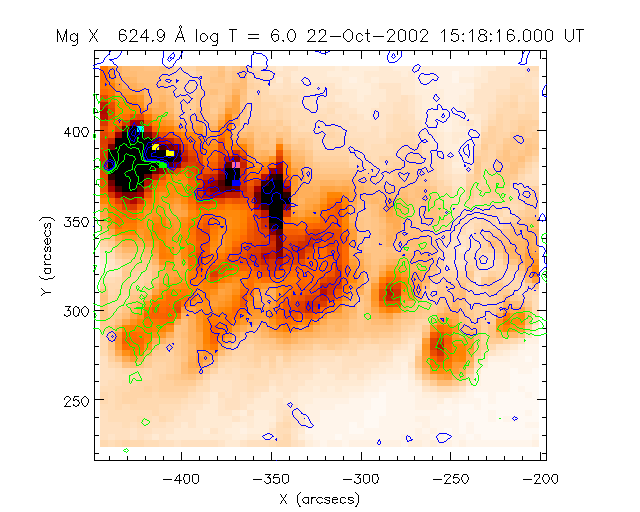

  MgX intensities + MDI contours.

• s26058r00_SiXII_int_mdi.gif
  SiXII intensities + MDI contours.

• s26058r00_SiXII_pos_mdi.gif

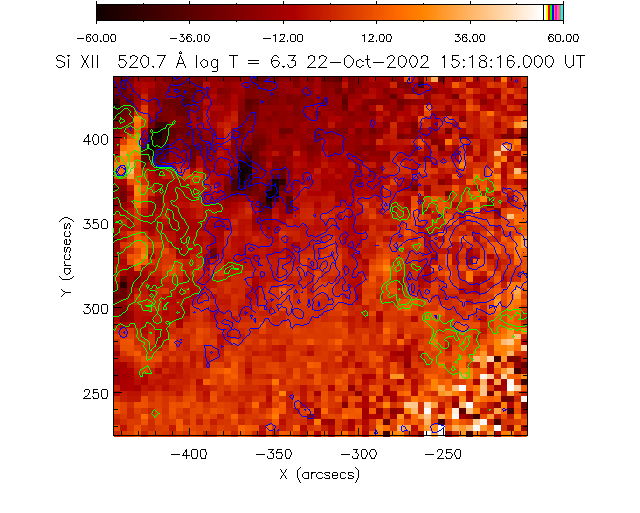

  SiXII velocity map (Km/s) + MDI contours.

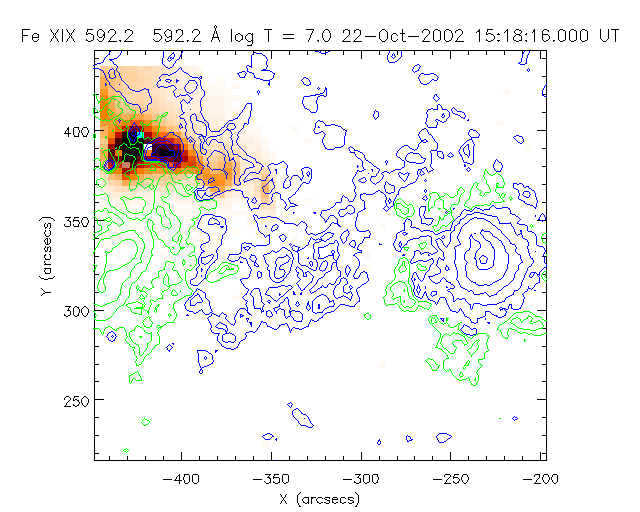

• s26058r00_FeXIX_int_mdi.gif
  Fe XIX intensities + MDI contours.

• s26058r00_FeXIX_int_SiXII_pos.gif
  Fe XIX intensities + contours of SiXII velocities.

• s26058r00_FeXIX_pos_mdi.gif

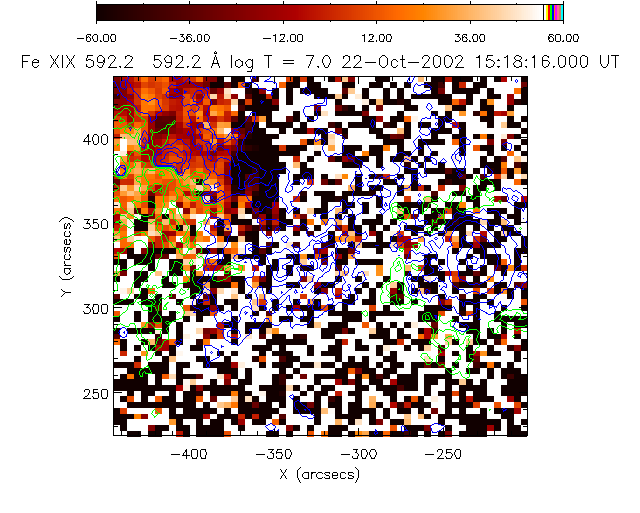

  Fe XIX velocity map (Km/s) + MDI contours.


  TRACE Maps overlaid:


• trace_195_154039_mdi.gif

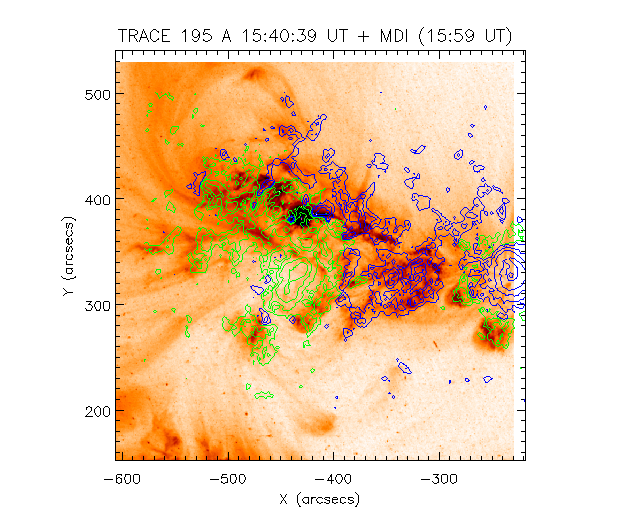

  Overview - TRACE 195 A + MDI contours.

• trace_195_154039_FeXIX_int.gif
  Zoom - TRACE 195 A + contours of FeXIX intensity.

• trace_195_154039_SiXII_pos.gif

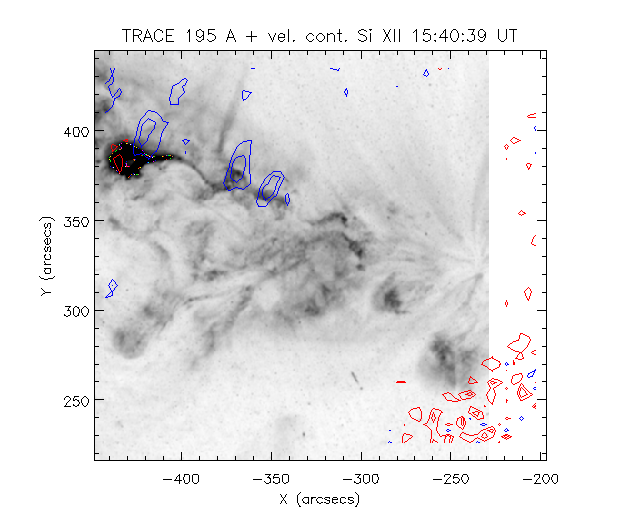

  Zoom - TRACE 195 A + contours of velocities from SiXII


  ---

• s26059r00_int.gif
• s26059r00_pos.gif
  POST-Flare DIAGNOSTIC RASTER. There is still quite strong Fe XIX emission.

  ---

• s26059r01_int.gif

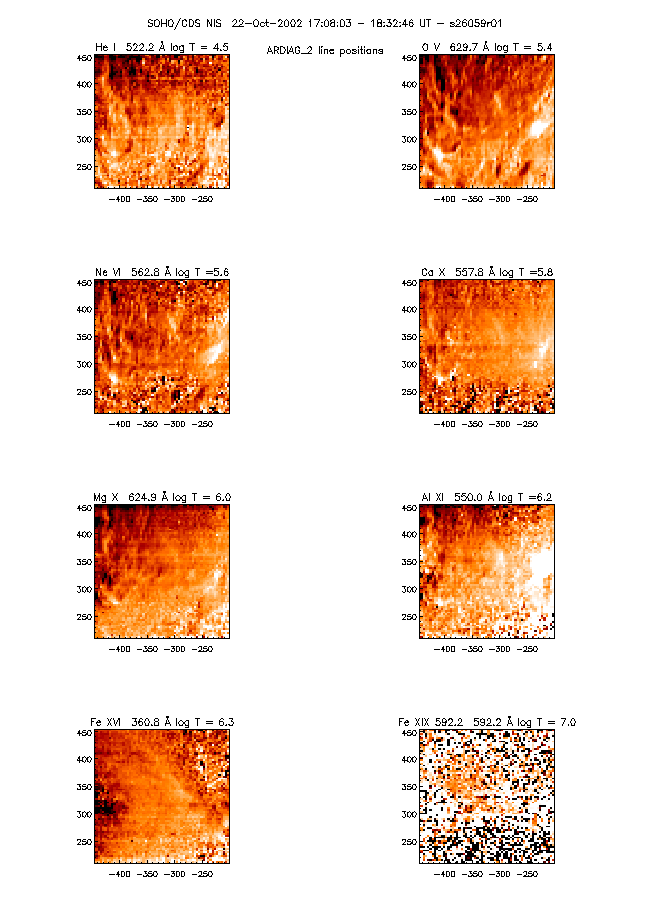

• s26059r01_pos.gif

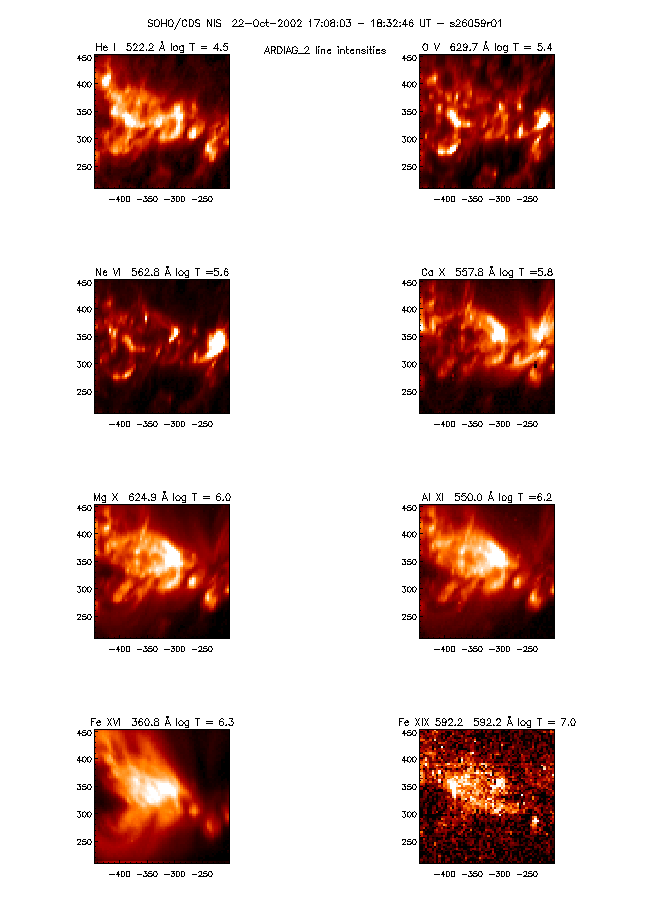

  POST-Flare DIAGNOSTIC RASTER. AR back to normal.

  ---

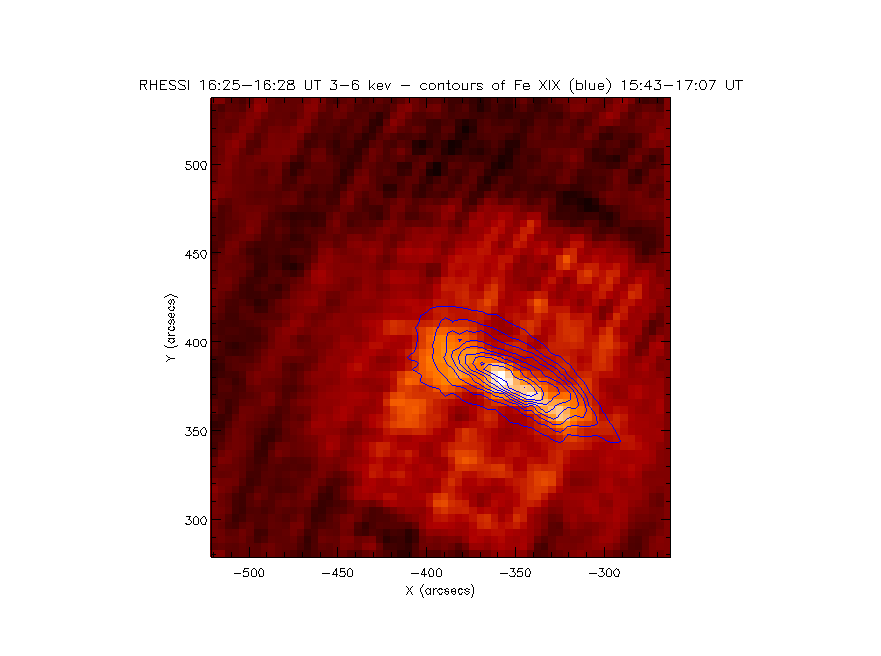

> RHESSI 1625_1628_3kev
